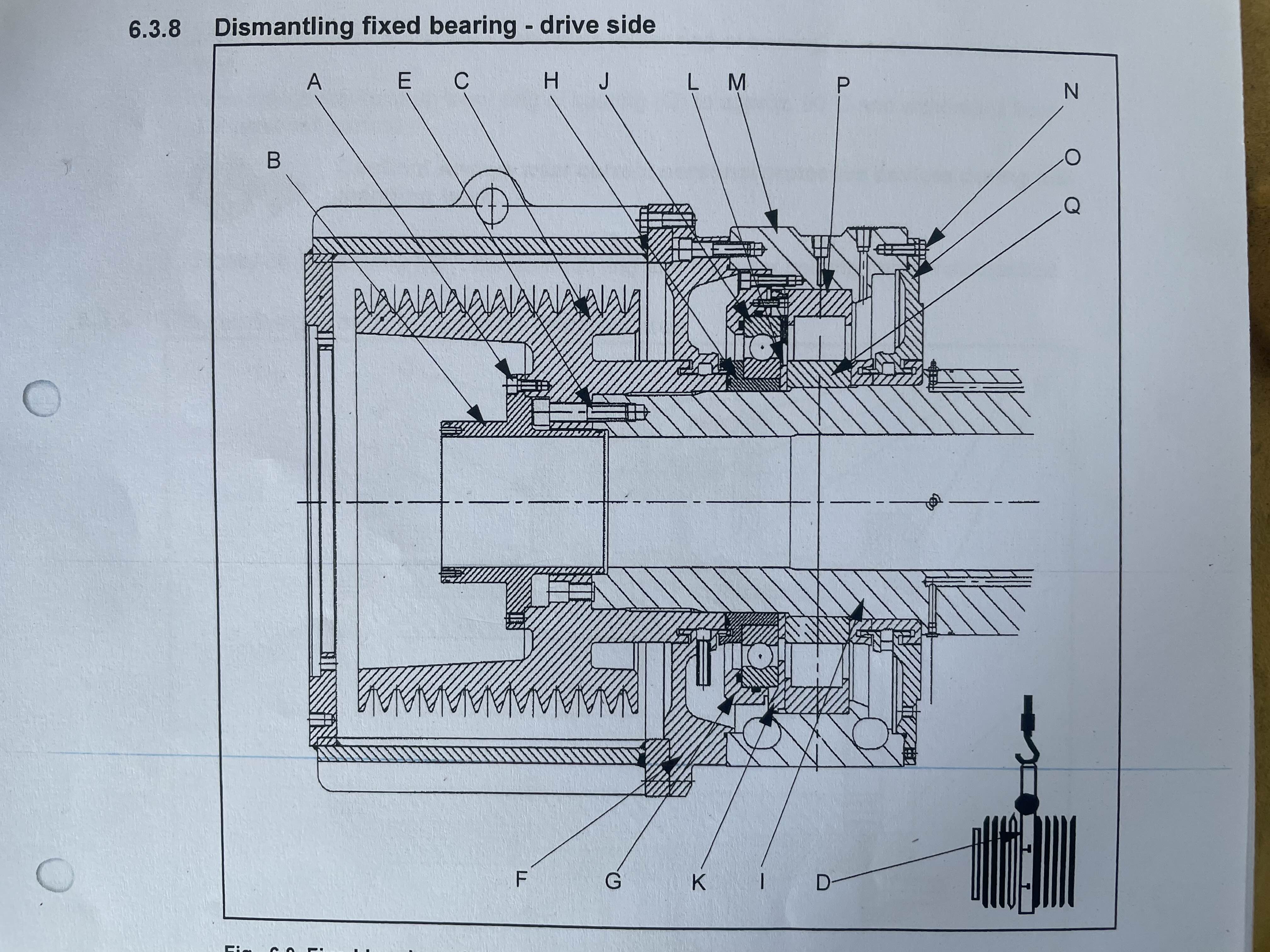

B: Center Pipe Hub
C: Pulley
F: Bearing Axial Thrust Cover
G: Bearing End Cover
H: Labyrinth & Splasher(Shim Plate 4 Pieace)
J: Depth Gr Ball Bearing
L: Color ( Spacer )
P: Cylinderical Roller Bearing
Q: Cylinderical Roller Bearing Inner Race
Next: Inner Splash & Labyrinth
O: Inner Bearing Cover
M: Plummer Block Bearing Housing
Drive Side Axial & End Play Readjustment
Mechanical Seal Sleeve 조립시 방향 확인
Gear Box Side Oil Splasher & Labyrinth 방향
Spline Shaft & Angular Contact Ball Bearing 조합 DB,DF,DT, 방향 확인 할것 Important
